Flow-based Models and Diffusion Models for EEG

Overview

Flow-based and diffusion models represent the most recent and powerful class of generative models. Flow-based models use invertible transformations with exact likelihood computation, while diffusion models learn to reverse a gradual noising process. Both produce state-of-the-art sample quality and have unique advantages for EEG-based affective computing — from clean signal reconstruction to uncertainty-aware emotion prediction.

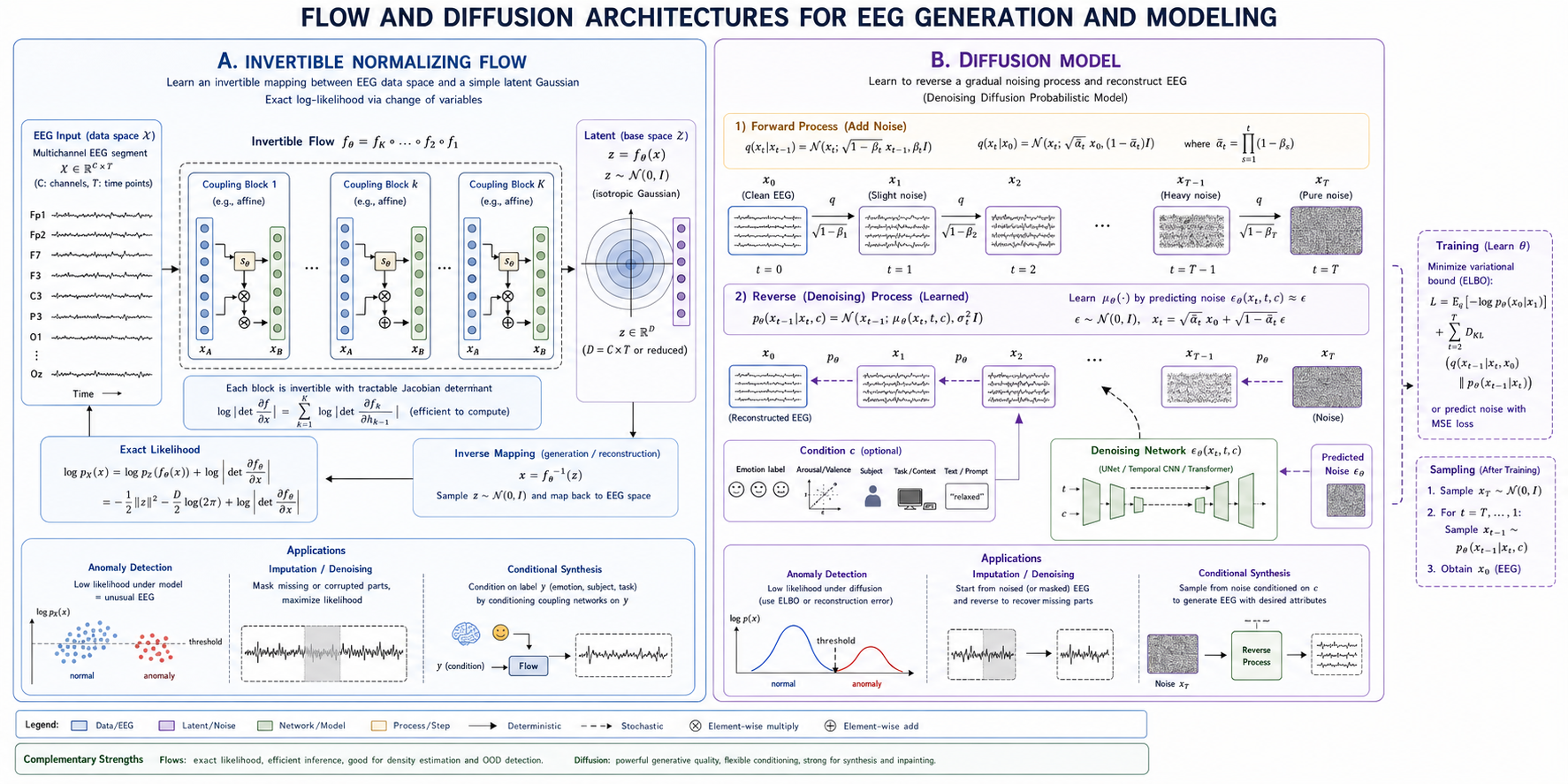

Figure 8.9: Flow and diffusion architectures for EEG. Flows map EEG and latent variables bijectively for exact density estimation, whereas diffusion models learn to reverse a staged corruption process for generation and denoising.

Part 1: Flow-based Models

Theoretical Foundations

Flow-based models transform a simple base distribution $p(z)$ (e.g., Gaussian) into a complex data distribution $p(x)$ through a series of invertible transformations:

$x = f_K \circ f_{K-1} \circ \cdots \circ f_1(z)$ $z = f_1^{-1} \circ f_2^{-1} \circ \cdots \circ f_K^{-1}(x)$

By the change of variables formula:

$\log p(x) = \log p(z) + \sum_{k=1}^K \log \left|\det \frac{\partial f_k}{\partial h_{k-1}}\right|$

Key property: Exact likelihood computation (unlike VAE's ELBO or GAN's implicit distribution).

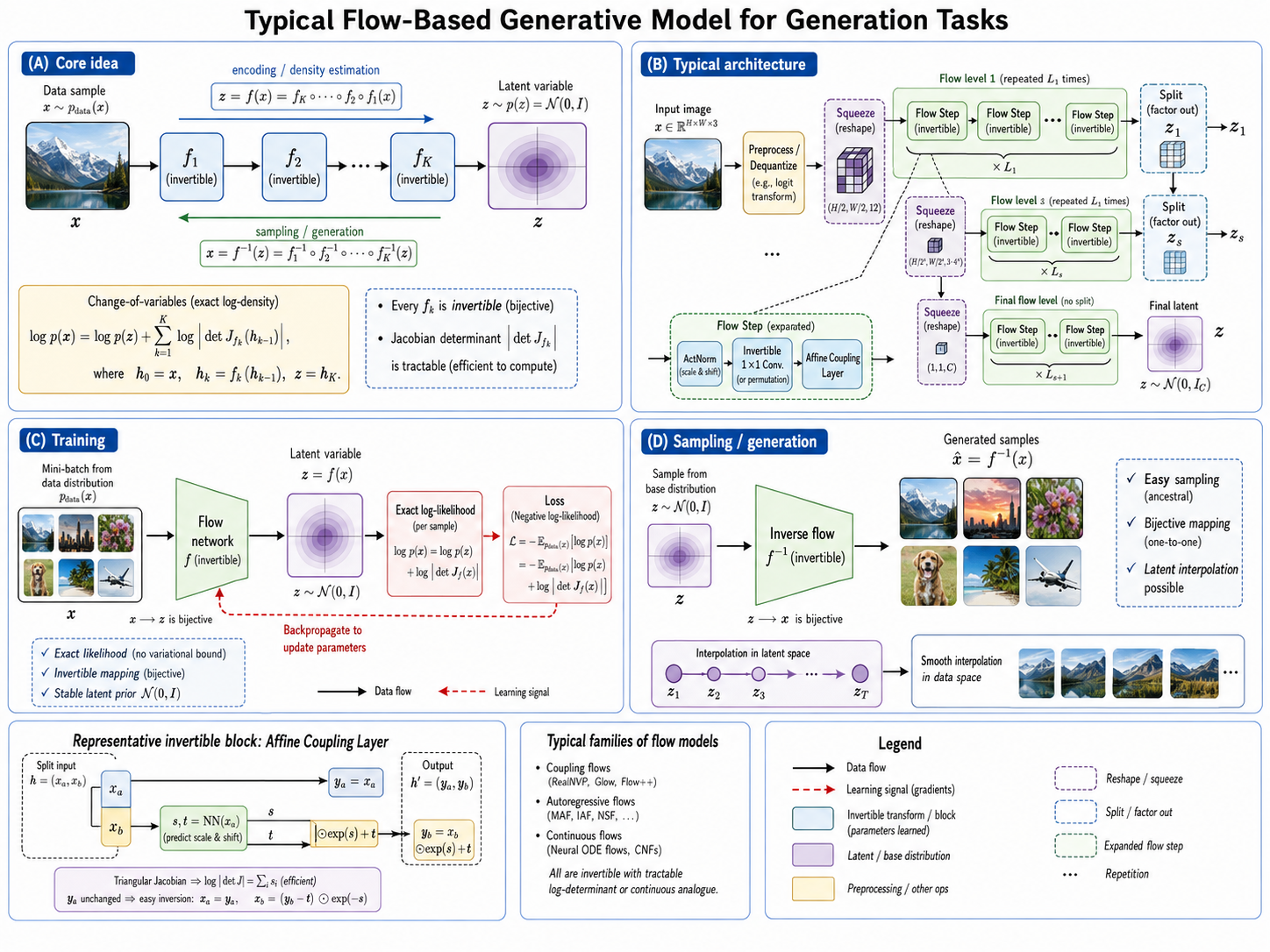

Normalizing Flows for EEG

RealNVP (Real-valued Non-Volume Preserving)

Uses coupling layers for efficient Jacobian computation:

Affine coupling layer:

Split input: x = [x_a, x_b]
  s, t = NN(x_a)        # Neural network predicts scale and translation
  y_b = s ⊙ x_b + t     # Transform only x_b
  y_a = x_a              # x_a unchanged
Output: y = [y_a, y_b]

Inverse is trivial:
  x_b = (y_b - t) / s
  x_a = y_a

The Jacobian is triangular, making $\det$ computation $O(d)$.

Glow for EEG

Extends RealNVP with:

1. ActNorm: Per-channel normalization with learnable scale/bias
2. 1×1 Invertible Convolution: Learnable channel mixing (generalizes permutation)
3. Affine Coupling: As in RealNVP

EEG input (14 channels, 2048 samples)
   ↓
ActNorm → 1×1 Conv → Affine Coupling → [Repeat K times]
   ↓
Latent z ~ N(0, I)

Applications in EEG Affective Computing

1. Exact Density Estimation

Compute how likely a given EEG segment is under the learned distribution:

# Train flow on normal/resting EEG
flow = GlowEEG()
flow.fit(resting_eeg, epochs=100)

# For new segment: compute log-likelihood
log_p = flow.log_prob(new_eeg_segment)

# Low log_p → anomaly (artifact, unusual brain state, etc.)
if log_p < threshold:
    flag_as_anomalous()

This is useful for:

• Artifact detection (eye blinks, muscle activity have low likelihood)
• Seizure detection (abnormal EEG patterns)
• Identifying unusual emotional responses

2. Controlled Generation with Latent Manipulation

Since flows map bijectively between data and latent space:

# Encode real EEG to latent
z_real = flow.encode(eeg_segment)

# Manipulate latent (e.g., traverse "emotion direction")
z_modified = z_real + alpha * emotion_direction

# Decode back to EEG
modified_eeg = flow.decode(z_modified)
# modified_eeg should have same subject identity but different emotion

3. Inpainting Missing EEG Channels

Recover missing channels using the flow's density model:

# Some channels are missing/corrupted
# Use optimization to find most likely complete EEG:
# maximize log p(x_known, x_missing | x_known is fixed)

# This naturally handles:
# - Broken electrodes
# - Artifact-corrupted channels
# - Sparse electrode arrays

Advantages and Limitations

Part 2: Diffusion Models

Theoretical Foundations

Diffusion models define a forward process that gradually destroys data by adding noise, and learn a reverse process that reconstructs data from noise.

Forward Diffusion Process

Start with clean EEG $x_0$, progressively add Gaussian noise over $T$ steps:

$q(x_t | x_{t-1}) = \mathcal{N}(x_t; \sqrt{1 - \beta_t} x_{t-1}, \beta_t I)$

After $T$ steps: $x_T \sim \mathcal{N}(0, I)$.

Can directly sample $x_t$ from $x_0$:

$q(x_t | x_0) = \mathcal{N}(x_t; \sqrt{\bar{\alpha}_t} x_0, (1 - \bar{\alpha}_t) I)$

where $\bar{\alpha}_t = \prod_{s=1}^t (1 - \beta_s)$.

Reverse Diffusion Process

Learn to reverse the noising process:

$p_\theta(x_{t-1} | x_t) = \mathcal{N}(x_{t-1}; \mu_\theta(x_t, t), \Sigma_\theta(x_t, t))$

The network predicts the noise $\epsilon_\theta(x_t, t)$ that was added:

$\mathcal{L}_{\text{simple}} = \mathbb{E}_{t, x_0, \epsilon}\left[\|\epsilon - \epsilon_\theta(x_t, t)\|^2\right]$

Sampling (Generation)

Start from pure noise: x_T ~ N(0, I)
For t = T, T-1, ..., 1:
    Predict noise: ε̂ = ε_θ(x_t, t)
    Remove noise: x_{t-1} = remove_noise(x_t, ε̂)
Output: x_0 (clean EEG)

Why Diffusion Models for EEG?

Advantages:

• Highest sample quality: State-of-the-art generation fidelity
• Stable training: No adversarial game, simple MSE loss
• Flexible conditioning: Easy to add emotion labels, subject info
• Excellent denoising: Natural fit for noisy EEG signals
• Uncertainty quantification: Multiple samples from same noise give distribution
• Progressive generation: Coarse-to-fine refinement mirrors EEG signal structure

Challenges:

• Slow sampling: 100-1000 denoising steps (being addressed by DDIM, consistency models)
• High computational cost: Training requires many timesteps
• No latent encoding: Harder to get compact representations (addressed by latent diffusion)
• Memory intensive: Full sequence denoising for long EEG

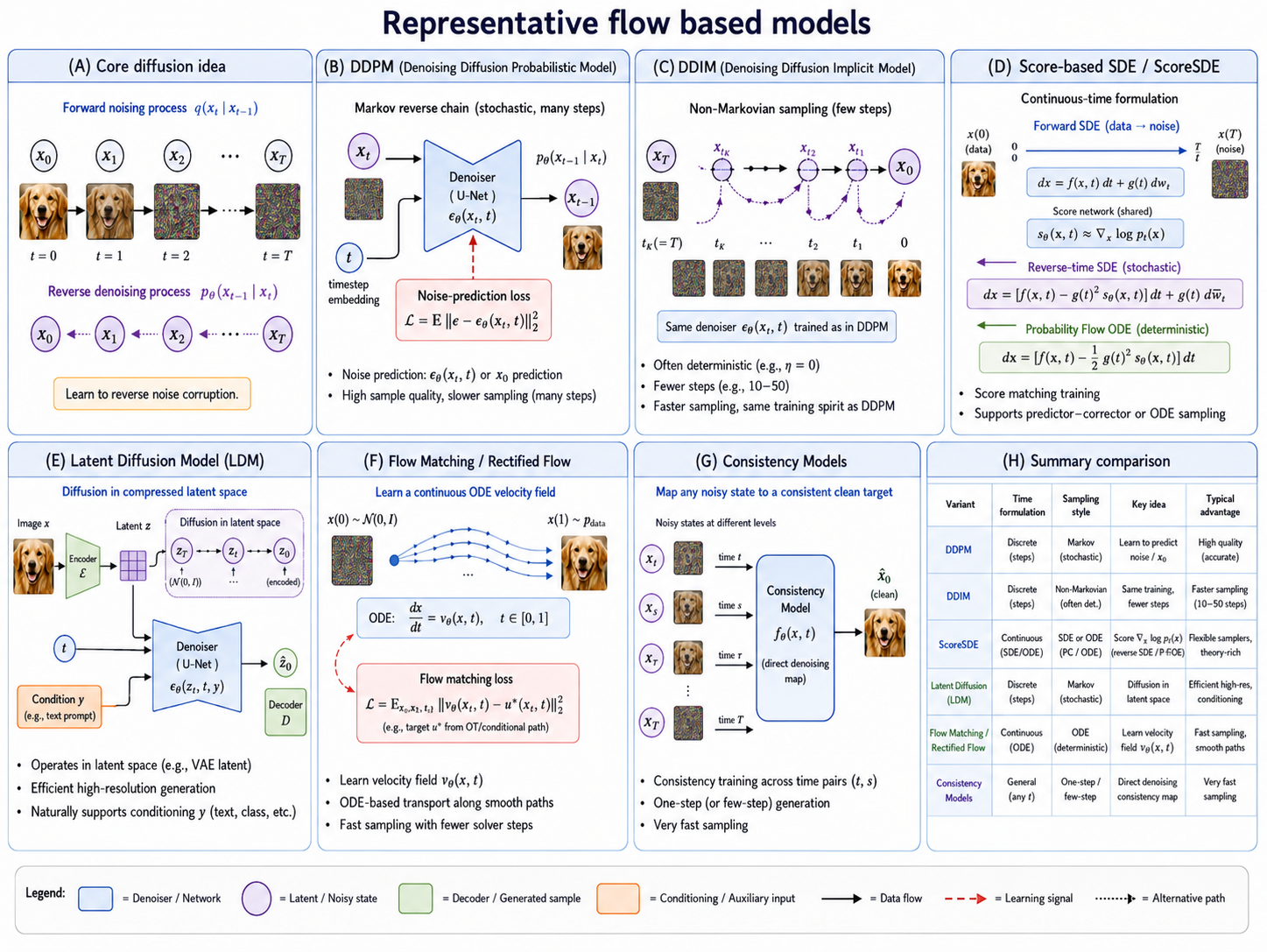

Diffusion Architectures for EEG

1. EEG Diffusion (1D U-Net)

Standard diffusion with a 1D U-Net adapted for EEG:

Noisy EEG (14, 2048) + timestep t
   ↓
[Encoder Path]
  Conv1D(64) → DownSample
  Conv1D(128) → DownSample
  Conv1D(256) → DownSample
  Conv1D(512) → DownSample
   ↓
[Bottleneck]
  Conv1D(512) + Self-Attention
   ↓
[Decoder Path]
  Upsample → Conv1D(512) + Skip
  Upsample → Conv1D(256) + Skip
  Upsample → Conv1D(128) + Skip
  Upsample → Conv1D(64) + Skip
   ↓
Output: Predicted noise ε̂ (14, 2048)

2. Conditional Diffusion (Classifier-Free Guidance)

Generate EEG conditioned on emotion labels:

# Train with and without conditioning (drop condition 10% of time)
# At sampling:
ε̂_cond = ε_θ(x_t, t, y)       # Conditioned on emotion y
ε̂_uncond = ε_θ(x_t, t, ∅)     # Unconditioned

# Classifier-free guidance:
ε̂ = ε̂_uncond + w * (ε̂_cond - ε̂_uncond)

# w > 1: stronger conditioning (better emotion match, less diverse)
# w = 1: standard conditional generation

3. Latent Diffusion Model (LDM)

Diffuse in compressed latent space (like Stable Diffusion):

Raw EEG → VAE Encoder → z₀ (compressed 64×)
   ↓
Diffusion in latent space (much faster)
   ↓
z_T → ... → ẑ₀
   ↓
VAE Decoder → Generated EEG

Benefit: Dramatically faster training and sampling (64× compression).

4. Denoising Diffusion Implicit Models (DDIM)

Deterministic sampling with fewer steps:

# DDIM sampling (10-50 steps instead of 1000)
x_{t-1} = √(ᾱ_{t-1}) * x̂₀ + √(1 - ᾱ_{t-1} - σ_t²) * ε̂_θ + σ_t * z
# With σ_t = 0, sampling is deterministic
# 50 steps often sufficient for good quality

Implementation

EEG Diffusion Model

import tensorflow as tf
from tensorflow.keras import layers, Model
import numpy as np

class EEGDiffusion(Model):
    def __init__(self, n_channels=14, seq_len=2048, n_timesteps=1000):
        super().__init__()
        self.n_channels = n_channels
        self.seq_len = seq_len
        self.n_timesteps = n_timesteps

        # Noise schedule
        self.betas = self._cosine_beta_schedule(n_timesteps)
        self.alphas = 1.0 - self.betas
        self.alphas_cumprod = np.cumprod(self.alphas)

        # 1D U-Net for noise prediction
        self.unet = self._build_unet()

    def _cosine_beta_schedule(self, timesteps, s=0.008):
        """Cosine schedule (better than linear for EEG)"""
        steps = timesteps + 1
        x = np.linspace(0, timesteps, steps)
        alphas_cumprod = np.cos(((x / timesteps) + s) / (1 + s) * np.pi * 0.5) ** 2
        alphas_cumprod = alphas_cumprod / alphas_cumprod[0]
        betas = 1 - (alphas_cumprod[1:] / alphas_cumprod[:-1])
        return np.clip(betas, 1e-4, 0.02)

    def _build_unet(self):
        """1D U-Net with time embedding"""
        input_eeg = layers.Input(shape=(self.seq_len, self.n_channels))
        t_input = layers.Input(shape=(1,))

        # Time embedding
        t_emb = layers.Dense(256)(t_input)
        t_emb = layers.ReLU()(t_emb)
        t_emb = layers.Dense(256)(t_emb)

        # Encoder
        x = input_eeg
        skips = []

        for filters in [64, 128, 256, 512]:
            # Time-conditioned conv block
            x = layers.Conv1D(filters, 3, padding='same')(x)
            # Add time embedding
            t_proj = layers.Dense(filters)(t_emb)
            t_proj = layers.Reshape((1, filters))(t_proj)
            x = layers.Add()([x, t_proj])
            x = layers.GroupNormalization(groups=8)(x)
            x = layers.ReLU()(x)
            skips.append(x)

            if filters < 512:
                x = layers.Conv1D(filters, 3, strides=2, padding='same')(x)

        # Bottleneck with attention
        x = layers.Conv1D(512, 3, padding='same')(x)
        x = layers.MultiHeadAttention(num_heads=8, key_dim=64)(x, x)
        x = layers.GroupNormalization(groups=8)(x)
        x = layers.ReLU()(x)

        # Decoder
        for filters, skip in zip([256, 128, 64], reversed(skips[:-1])):
            x = layers.Conv1DTranspose(filters, 3, strides=2, padding='same')(x)
            x = layers.Concatenate()([x, skip])

            x = layers.Conv1D(filters, 3, padding='same')(x)
            t_proj = layers.Dense(filters)(t_emb)
            t_proj = layers.Reshape((1, filters))(t_proj)
            x = layers.Add()([x, t_proj])
            x = layers.GroupNormalization(groups=8)(x)
            x = layers.ReLU()(x)

        # Output
        output = layers.Conv1D(self.n_channels, 3, padding='same')(x)

        return Model(inputs=[input_eeg, t_input], outputs=output)

    def add_noise(self, x_0, t):
        """Forward diffusion: x_0 → x_t"""
        sqrt_alpha_cumprod = np.sqrt(self.alphas_cumprod[t])
        sqrt_one_minus_alpha_cumprod = np.sqrt(1 - self.alphas_cumprod[t])

        epsilon = tf.random.normal(tf.shape(x_0))

        # Reshape for broadcasting
        sqrt_alpha_cumprod = tf.reshape(sqrt_alpha_cumprod, [-1, 1, 1])
        sqrt_one_minus_alpha_cumprod = tf.reshape(sqrt_one_minus_alpha_cumprod, [-1, 1, 1])

        x_t = sqrt_alpha_cumprod * x_0 + sqrt_one_minus_alpha_cumprod * epsilon
        return x_t, epsilon

    def train_step(self, x_0):
        batch_size = tf.shape(x_0)[0]

        # Sample random timesteps
        t = tf.random.uniform(
            [batch_size], minval=0, maxval=self.n_timesteps, dtype=tf.int32
        )

        # Add noise
        x_t, epsilon = self.add_noise(x_0, t)

        # Predict noise
        with tf.GradientTape() as tape:
            epsilon_pred = self.unet([x_t, tf.cast(t[:, None], tf.float32)])
            loss = tf.reduce_mean(tf.square(epsilon - epsilon_pred))

        grads = tape.gradient(loss, self.trainable_variables)
        self.optimizer.apply_gradients(zip(grads, self.trainable_variables))

        return {'loss': loss}

    @tf.function
    def sample(self, batch_size, n_steps=None):
        """Generate new EEG samples"""
        if n_steps is None:
            n_steps = self.n_timesteps

        # Start from pure noise
        x = tf.random.normal((batch_size, self.seq_len, self.n_channels))

        # Timestep schedule (can use fewer steps with DDIM)
        timesteps = list(range(self.n_timesteps - 1, -1,
                               -self.n_timesteps // n_steps))

        for t in timesteps:
            t_batch = tf.fill([batch_size], t)
            t_input = tf.cast(t_batch[:, None], tf.float32)

            # Predict noise
            epsilon_pred = self.unet([x, t_input])

            # Denoise step
            alpha = self.alphas[t]
            alpha_cumprod = self.alphas_cumprod[t]
            beta = self.betas[t]

            if t > 0:
                noise = tf.random.normal(tf.shape(x))
            else:
                noise = 0

            x = (1 / tf.sqrt(alpha)) * (
                x - ((1 - alpha) / tf.sqrt(1 - alpha_cumprod)) * epsilon_pred
            ) + tf.sqrt(beta) * noise

        return x

EEG-Specific Diffusion Design Choices

Noise Schedule Selection

For EEG (structured, oscillatory signals):

# Cosine schedule preserves low-frequency structure longer
cosine_schedule = cosine_beta_schedule(1000)

# Linear schedule destroys all frequencies uniformly
linear_schedule = linear_beta_schedule(1000)

# For EEG: cosine preferred (preserves rhythmic structure)

Conditioning Strategies

# 1. Emotion label conditioning (classifier-free)
ε̂ = unet(x_t, t, emotion_embedding)

# 2. Subject identity conditioning
ε̂ = unet(x_t, t, subject_embedding)
# Generate EEG for specific subject with controlled emotion

# 3. Channel conditioning
ε̂ = unet(x_t, t, channel_embedding)
# Handle variable electrode configurations

# 4. Multi-condition (emotion + subject + session)
ε̂ = unet(x_t, t, emotion_emb + subject_emb + session_emb)

Applications in EEG Affective Computing

1. EEG Denoising and Artifact Removal

Diffusion models are naturally suited for denoising:

# Train diffusion model on clean EEG
diffusion.fit(clean_eeg, epochs=200)

# For artifact-corrupted EEG:
# 1. Add small amount of noise (helps remove artifacts)
# 2. Run reverse diffusion from low noise level
# 3. Model "hallucinates" clean EEG consistent with learned distribution

# This removes:
# - Eye blink artifacts (sharp transients)
# - Muscle activity (high-frequency noise)
# - Electrode pop artifacts
# While preserving emotional EEG patterns

2. Super-Resolution EEG

Enhance low-density EEG to high-density:

# Input: 4-channel consumer EEG (Muse, Emotiv)
# Output: 64-channel research-grade EEG

# Conditional diffusion:
ε̂ = unet(x_t, t, low_res_channel_info)

# Generates plausible high-density EEG from sparse measurements
# Enables consumer devices for research-grade analysis

3. Missing Channel Imputation

Recover data from broken/missing electrodes:

# Known channels: 12 of 14
# Missing channels: 2 (e.g., Fp1, O2)

# Diffusion inpainting:
# At each denoising step:
#   - Known channels: keep as is
#   - Missing channels: use model prediction

# Result: Plausible reconstruction preserving emotional content

4. Conditional Generation for Data Augmentation

# Train conditional diffusion on all emotions
cond_diffusion = ConditionalEEGDiffusion()

# Generate samples for each emotion class
happy_eeg = cond_diffusion.sample(emotion='happy', n=200)
sad_eeg = cond_diffusion.sample(emotion='sad', n=200)
neutral_eeg = cond_diffusion.sample(emotion='neutral', n=200)

# Use for:
# - Balancing emotion datasets
# - Training downstream classifiers
# - Few-shot learning evaluation

5. Counterfactual EEG Generation

"What would this subject's EEG look like if they were feeling happy instead of sad?"

# Encode real EEG with DDIM inversion
# (reverse the sampling process to find latent noise)
x_T = ddim_invert(real_sad_eeg)

# Change emotion condition
# Regenerate with different condition
counterfactual_happy = cond_diffusion.sample(
    x_T=x_T, condition='happy'
)

# counterfactual_happy preserves subject identity,
# session context, but changes emotional content

Comparison of Generative Models

Practical Recommendations for EEG

Which Model to Choose?

Goal: Representation learning + interpretability
  → VAE (structured latent space, disentanglement)

Goal: Data augmentation (sharp, realistic EEG)
  → GAN (WGAN-GP for stability)

Goal: Exact density estimation + anomaly detection
  → Flow-based models (exact likelihood)

Goal: Denoising + highest quality generation
  → Diffusion models (state-of-the-art)

Goal: Fast real-time generation
  → VAE or GAN (1-step generation)
  → or distilled diffusion (progressive distillation)

Goal: Cross-subject translation
  → GAN (CycleGAN) or Conditional Diffusion

Goal: Uncertainty quantification
  → VAE (probabilistic) or Diffusion (multiple samples)

Hybrid Approaches

VAE + GAN (VAE-GAN):

• VAE encoder/decoder + GAN discriminator
• Structured latent space + sharp generations
• Good for controlled EEG generation

Latent Diffusion (VAE + Diffusion):

• VAE compresses EEG → Diffusion in latent space
• Fast sampling + high quality
• State-of-the-art for image generation; emerging for EEG

Flow + Diffusion:

• Flow provides fast encoding/decoding
• Diffusion provides high-quality refinement
• Best of both worlds

Best Practices

1. Start with DDIM sampling: 50 steps often sufficient for EEG
2. Use cosine noise schedule: Preserves rhythmic EEG structure
3. Apply classifier-free guidance: $w \in [1.5, 3.0]$ for EEG
4. Normalize to $[-1, 1]$: Standard for diffusion models
5. Validate spectral content: Check PSD, band powers match real EEG
6. Use EMA (Exponential Moving Average) of model weights for sampling
7. Monitor loss curves: Smooth decreasing loss indicates good training
8. Progressive distillation for deployment: Train student to do 1-4 step sampling

Summary

Flow-based and diffusion models represent the frontier of generative modeling for EEG:

Flow-based Models:

• Unique exact likelihood computation
• Natural anomaly/artifact detection
• Invertible mapping enables controlled manipulation
• Best for: density estimation, missing channel imputation, interpretable manipulation

Diffusion Models:

• State-of-the-art sample quality
• Excellent denoising and super-resolution
• Stable training with simple MSE objective
• Flexible conditioning strategies
• Best for: data augmentation, denoising, super-resolution, conditional generation

Emerging Trend: Latent diffusion models (compress EEG → diffuse in latent space → decode) combine the best of VAEs and diffusion models, offering fast sampling with high quality — likely the future direction for EEG generative modeling.

Related Reading: See Variational Autoencoders and Generative Adversarial Networks for complementary generative approaches.

References

• Dinh, L., Sohl-Dickstein, J., and Bengio, S. (2017). Density estimation using Real NVP. In ICLR.
• Kingma, D. P., and Dhariwal, P. (2018). Glow: Generative flow with invertible 1×1 convolutions. In NeurIPS.
• Papamakarios, G., Nalisnick, E., Rezende, D. J., Mohamed, S., and Lakshminarayanan, B. (2021). Normalizing flows for probabilistic modeling and inference. JMLR, 22(57), 1–64.
• Ho, J., Jain, A., and Abbeel, P. (2020). Denoising diffusion probabilistic models. In NeurIPS.
• Song, Y., Sohl-Dickstein, J., Kingma, D. P., Kumar, A., Ermon, S., and Poole, B. (2021). Score-based generative modeling through stochastic differential equations. In ICLR.
• Song, J., Meng, C., and Ermon, S. (2021). Denoising diffusion implicit models. In ICLR.
• Ho, J., and Salimans, T. (2022). Classifier-free diffusion guidance. arXiv:2207.12598.
• Nichol, A. Q., and Dhariwal, P. (2021). Improved denoising diffusion probabilistic models. In ICML.
